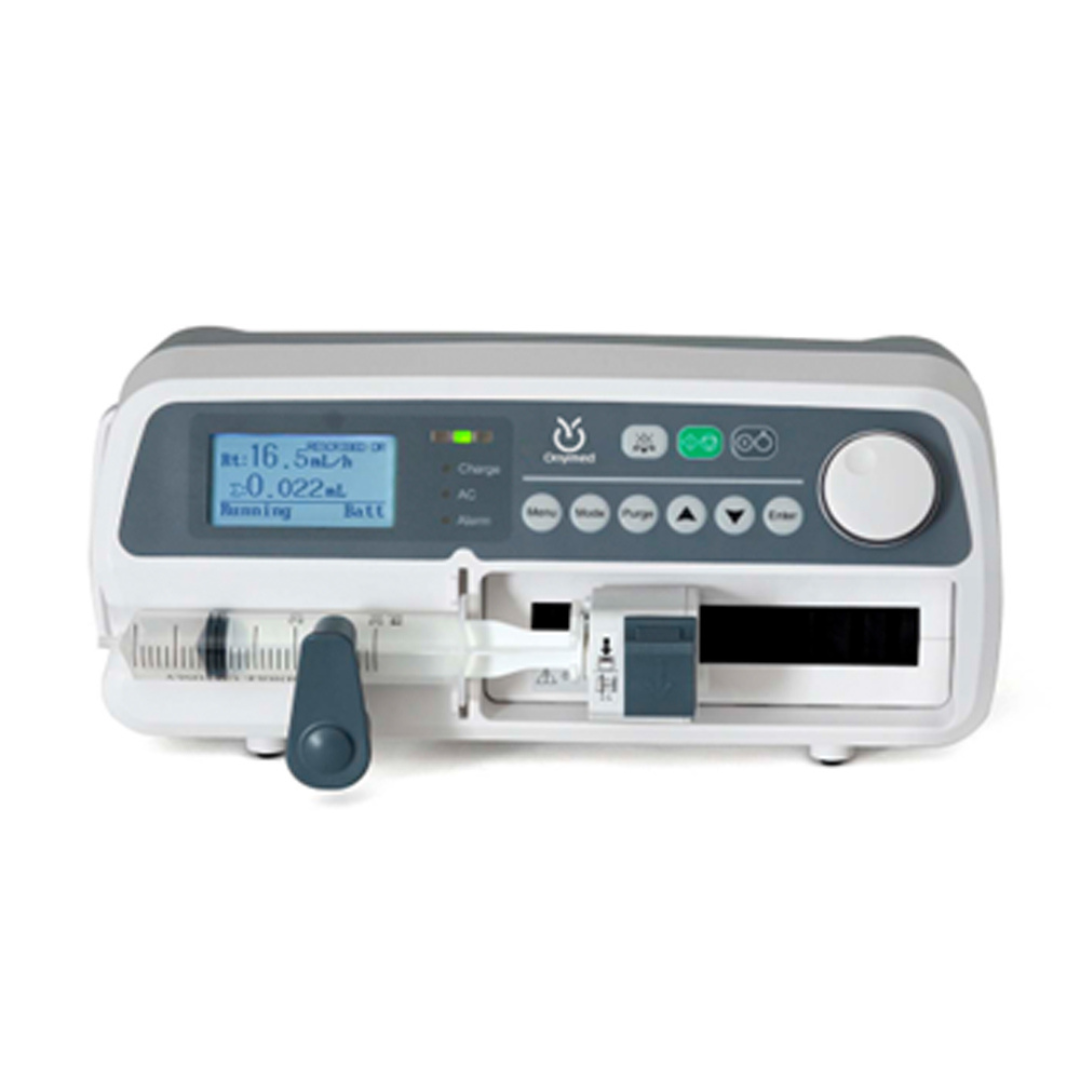

ONYMED SYRINGE PUMP (OM-302)

Advanced syringe pump designed for precise drug delivery, real-time monitoring, and patient safety ideal for critical care, long infusions, and hospital workflows requiring accuracy and reliability.

Features

• Syringe Size: 10, 20, 30, 50/60 ml
• Applicable Syringe: Compatible with syringe of any standard 0.1-9999 ml
• VTBI: <1000 ml in 0.1 ml increments, =1000 ml in 1 ml increments
• Flow Rate: Syringe 10 ml: 0.1-400 ml/h.
  Syringe 20 ml: 0.1-600 ml/h.
  Syringe 30 ml: 0.1-900 ml/h.
  Syringe 50/60 ml: 0.1-1300 ml/h
  <100 ml/h in 0.1 ml/h increments
  =100 ml/h in 1 ml/h increments
• Bolus Rate: 100 ml/h-1300 ml/h, adjustable
• Anti-Bolus: Automatic
• Accuracy: ±2% (mechanical accuracy =1%)
• Infusion Mode: Flow rate: ml/min, ml/h
  Time-based
  Body weight: mg/kg/min, mg/kg/h, ug/kg/min, ug/kg/h etc.
• KVO Rate: 0.1-1 ml/h (in 0.1 ml/h increments)
• Alarms: Occlusion, near empty, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, standby, pressure sensor error, syringe installation error, syringe drop off
• Additional Features: Real-time infused volume, automatic power switching, automatic syringe identification, mute key, purge, bolus, anti-bolus, system memory, key locker
• Docking Station: Stackable up to 4-in-1 or 6-in-1 Docking Station with single power cord
• Drug Library: Available
• Occlusion Sensitivity: High, medium, low
• Wireless Management: Optional
• Power Supply, AC: 110/230 V (optional), 50/60 Hz, 20 VA
• Battery: 9.6±1.6 V, rechargeable
• Battery Life: 7 hours at 5 ml/h
• Working Temperature: 5-40?
• Relative Humidity: 20-90%
• Atmospheric Pressure: 860-1060 hpa
• Size: 314*167*140 mm
• Weight: 2.5 kg
• Safety Classification: Class II, type CF
